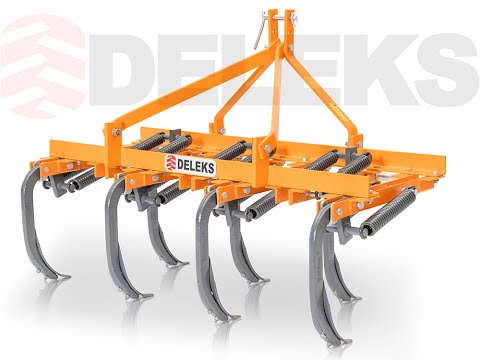

DELEKS 1.2m Tractor Mounted Cultivator D‑DE120‑5

The DELEKS D-DE120-5 is a 1.2m mounted cultivator built around 5 heat-forged tines, each backed by two springs. It's aimed at the smallholder running a 16–35 HP compact tractor who needs to break compacted ground, lift weed roots clear and improve drainage between crops.

Twin-sprung tines in stony ground

Each tine is heat-forged and supported by a pair of springs. Hit a buried stone and the tine flexes back, then drops in again behind it. No snapped points, no stopping to clear the frame.

Real loosening, not surface scratching

Working depth reaches roughly 35 cm, depending on soil type and tractor horsepower. Deep enough to disturb pans, break up stagnant wet patches and let damp redistribute through the profile — not just rake the top inch. Run it between rows and weed roots come up; the crop stays put.

Shanks that earn their keep

The shank is reversible: flip it when the leading edge wears, replace it when both ends are spent. The channel frame carries the load without flex.

• 1.2m working width across 5 tines — single-pass run for a compact tractor
• Approx. 35 cm working depth, soil and horsepower dependent
• Tractor range 16–35 HP — sub-compacts and small utility tractors
• Heat-forged tines, each on two springs for stony and hard ground
• Reversible, replaceable shank for extended service life
• Cat 1 / Cat 2 three-point linkage
• 128 kg — manageable lift for small tractors
