SCH GWCS9 180L Towed Sprayer - 96" Spray Width

4.0 ·
1 review
  • SCH GWCS9 180L Towed Sprayer - 96" Spray Width
  • Video Placeholder
SAVE £160
SCH GWCS9 180L Towed Sprayer - 96" Spray Width
SCH GWCS9 180L Towed Sprayer - 96" Spray Width
SCH GWCS9 180L Towed Sprayer - 96" Spray Width

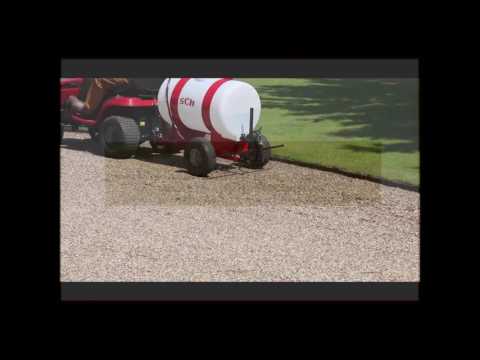

Streamline Spraying Tasks with SCH 180L Towed Sprayer

Streamline your spraying tasks with the SCH GWCS9 Towed Sprayer, featuring a 96-inch width and swing-back boom arms for seamless herbicide and fertilizer application.
£1,447 inc VAT
£1,205 excl VAT
£160 Saved
Hitch Type
Hand Lance Extras
Spray Boom Extras
Optional Dribble Bar
On/Off Toggle Switch
Electric Connection Type
Optional Extras
Built To Order - Arrival estimated 2-3 weeks.
Includes Pins, Clips & Essentials
Arrives Assembled & Greased
Fast-Track Builds
Need a ?

OverviewEssential SCH GWCS9 Towed Sprayer info

Towed

Propulsion Towed

244

Spray Width 244 cm

180

Capacity 180 L

1

Hand Lance Included

1

Free Delivery Included

DescriptionWhy buy the SCH GWCS9 Towed Sprayer?

The GWCS9 sprayer is an extremely versatile sprayer ideally suited to the application of herbicides and fertilisers to both large and small areas. The nozzle at each end of the boom is mounted on a swing back arm so in the event of the boom coming into contact with a tree or shrub, it will simply swing back instead of breaking off. Once the obstacle is passed, the boom end flips back to its normal position and spraying resumes.

The 12 volt diaphragm pump is powered from the lawn tractor's battery. In line filters are incorporated to prevent, as far as possible, irritating stoppages from blocked nozzles. The spray nozzles are mounted on anti-drip holders preventing the liquid from continuing to flow when the pump is shut down. A brass hand trigger lance, complete with quick and simple twist connectors, is supplied with this sprayer. The lance is an useful tool for spot spraying and around trees and shrubs. A 5 litre wash bottle is mounted on the chassis of the sprayer for dowsing down in case of skin contact with spray liquid.

The maximum spray width is 2440mm (96") and, with tow wing booms folded back and switched off, the spray width reduces to 1220mm (48").

* The
Download GWCS9 Manual

SpecificationsSCH GWCS9 Towed Sprayer technical details

  • Brand

    SCH (Supplies) Ltd

  • Reference (SKU)

    GWCS9

  • Capacity

    180L (40 gallons)

  • Pump

    12V diaphragm pump from tractor battery

  • Delivery

    7 litres per minute at 50 PSI

  • Spray Width with Boom

    2440mm (96")

  • Width without Boom

    860mm (34")

  • Boom Width Folded

    1220mm (48")

  • Hand Boom Reach

    50cm (20")

  • Wheel Type

    15/600 x 6 pneumatic

  • Hitch

    Clevis hitch as standard, 50mm ball hitch available

  • Weight Empty

    45kg

  • Country

    Made in Britain

  • Warranty

    12 months manufacturer's warranty + 3 month bonus when buying from Tractor Armoury.

ReviewsVerified SCH GWCS9 Towed Sprayer reviews

4.0 / 5
5
0
4
1
3
0
2
0
1
0

1 review for the SCH GWCS9 Towed Sprayer

Review Your SCH GWCS9

GWCS9
  ·  Alan M
05/03/23

The spreader is just what I needed

There were a few issues with the sprayer. I have had to drill and bolt the boom to the chassis as it worked loose when going over the fields and also strap up the extending boom arms because the they also worked loose and folded in. The spreader is just what I needed and with my tweaks the sprayer is much better.

Zaros A Logo
Reply from Tractor Armoury:

Thank you for your detailed feedback. I believe the boom worked itself loose due to the roughness of the field sprayed. If used on regularly cut, flat ground, this problem will not occur.

Experienced   ·   Reviewed after 10 months of use
